18U IP55 Wall Mounted Outdoor Server Rack Waterproof Cabinet for Industrial Use

기본 정보
원래 장소: 중국
브랜드 이름: LE
인증: RoHS、CE
모델 번호: 르-카
최소 주문 수량: 10개 조각/조각
가격: 협상 가능
포장 세부 사항: 조립 포장 또는 편평한 포장
배달 시간: 7 일
지불 조건: 티/티
공급 능력: 주 네트워크 내각 당 1000개 조각/조각
컬러 시리얼: Ral7035SN;RAL2000SN 보호 정도: IP55
키: 22U-42U 재료 두께: 장착 패널: 1.2mm, 기타: 1.2m
맞춤형: 사용 가능 너비: 200-600mm
깊이: 120-420MM OEM 서비스:
강조하다:

18U outdoor server rack

,

IP55 waterproof server cabinet

,

industrial wall mounted rack

Wall mounted Rack Outdoor Small Rack Cabinet IP54 Waterproof Server Rack
Key Features
  1. Strong and stable framework of cabinet, precise dimension, capacious inner mounting space.
  2. Multi-folded periphery of enclosure to keep water or dust out of cabinet.
  3. All-round polyurethane gasket near the protect slot with dustproof and waterproof.
  4. Front door can open to 110 degree, from left or right.

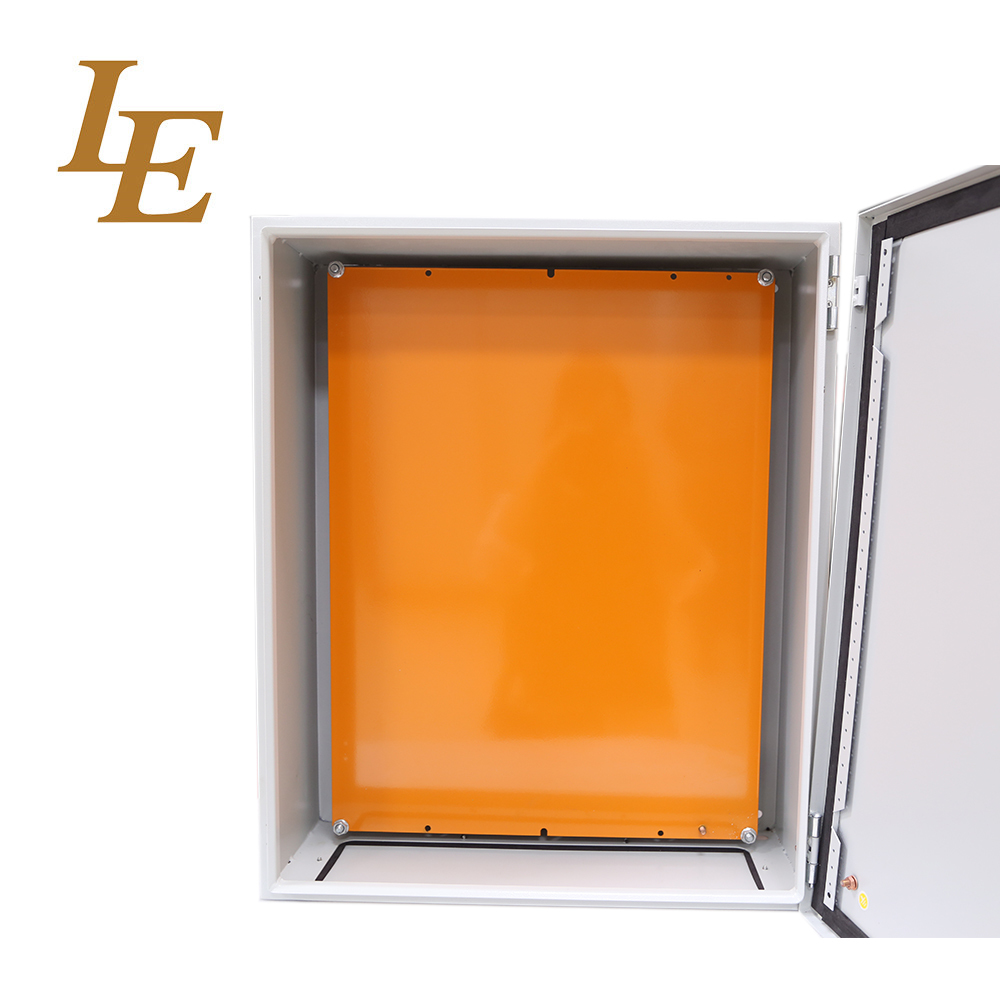

  5. Adjustable mounting panel inner the enclosure.
  6. The bottom have cable entrance with cover; sealed rings protection.
  7. M8 earthling pole on the body, mounting panel and door.
  8. Mounting bracket on the rear part of enclosure, which make the enclosure installing easily.

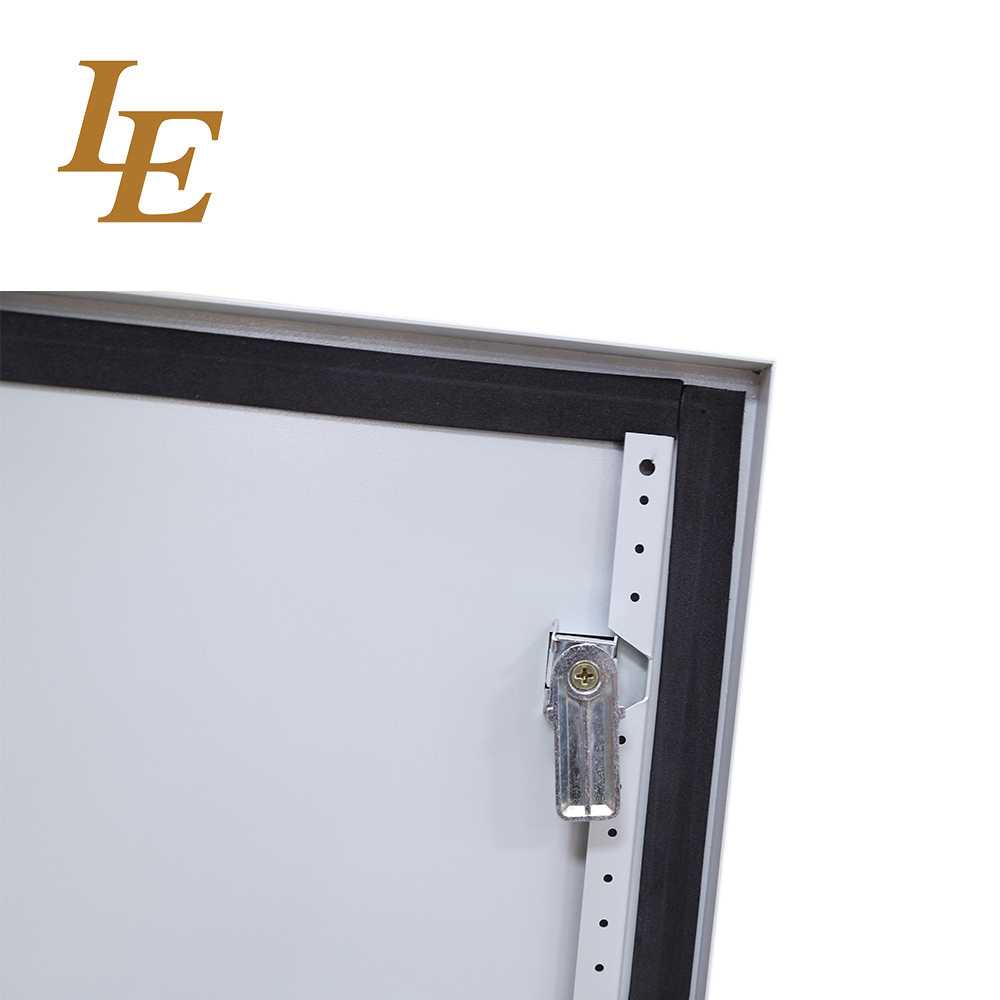

  9. Lock for front door with good seal performance.
  10. Apply to mount various industrial components, controlling equipments and cable management

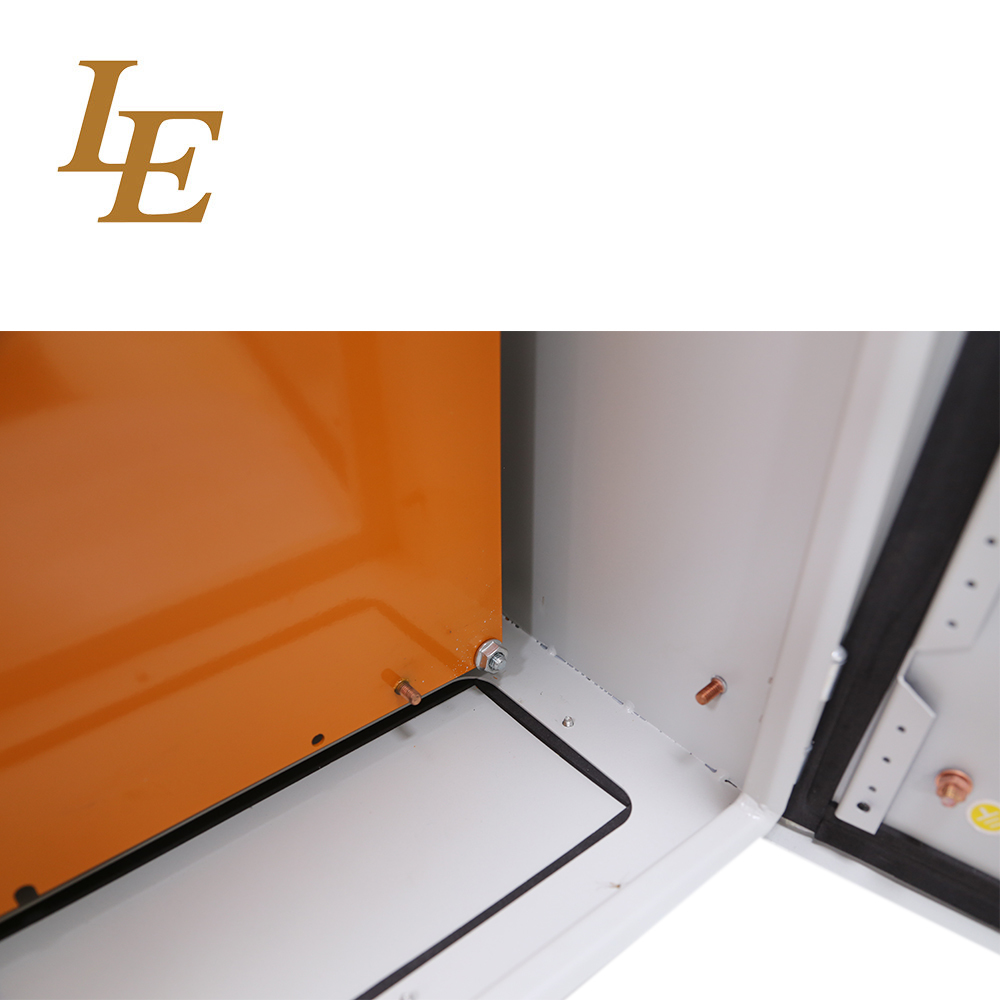

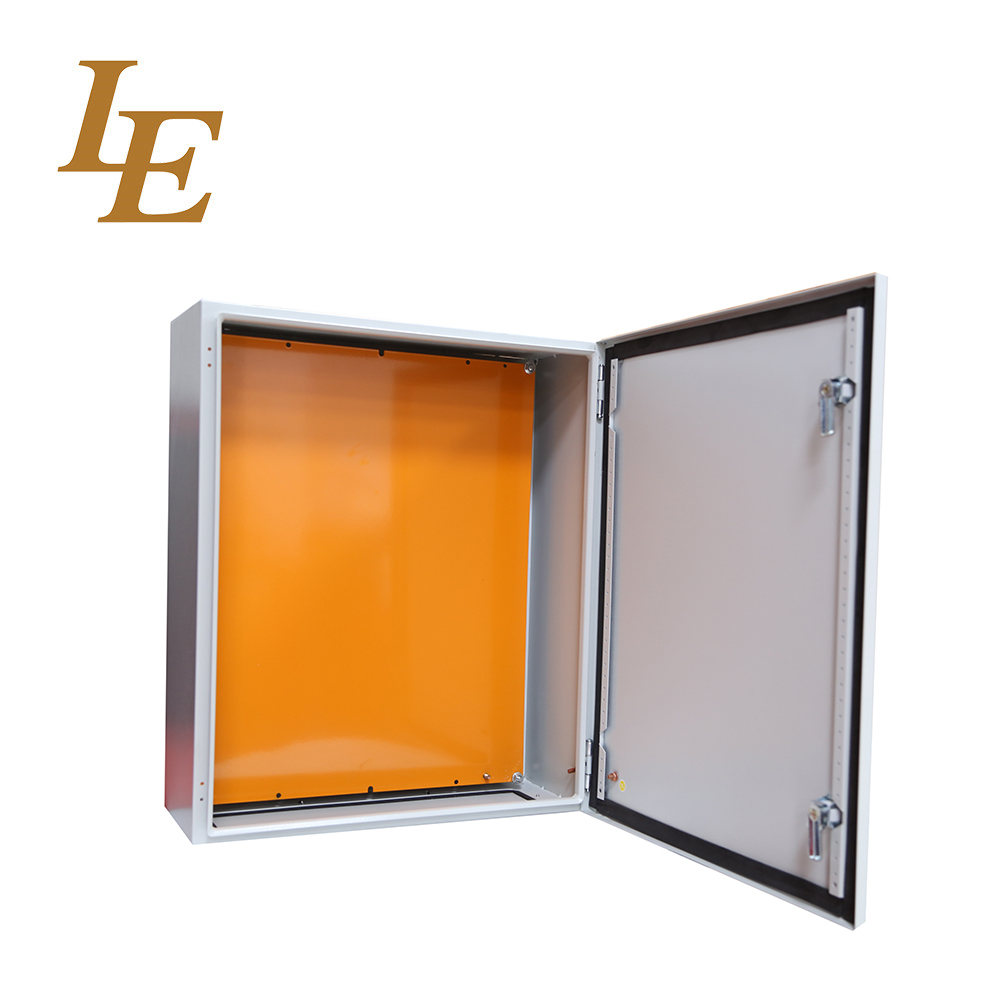

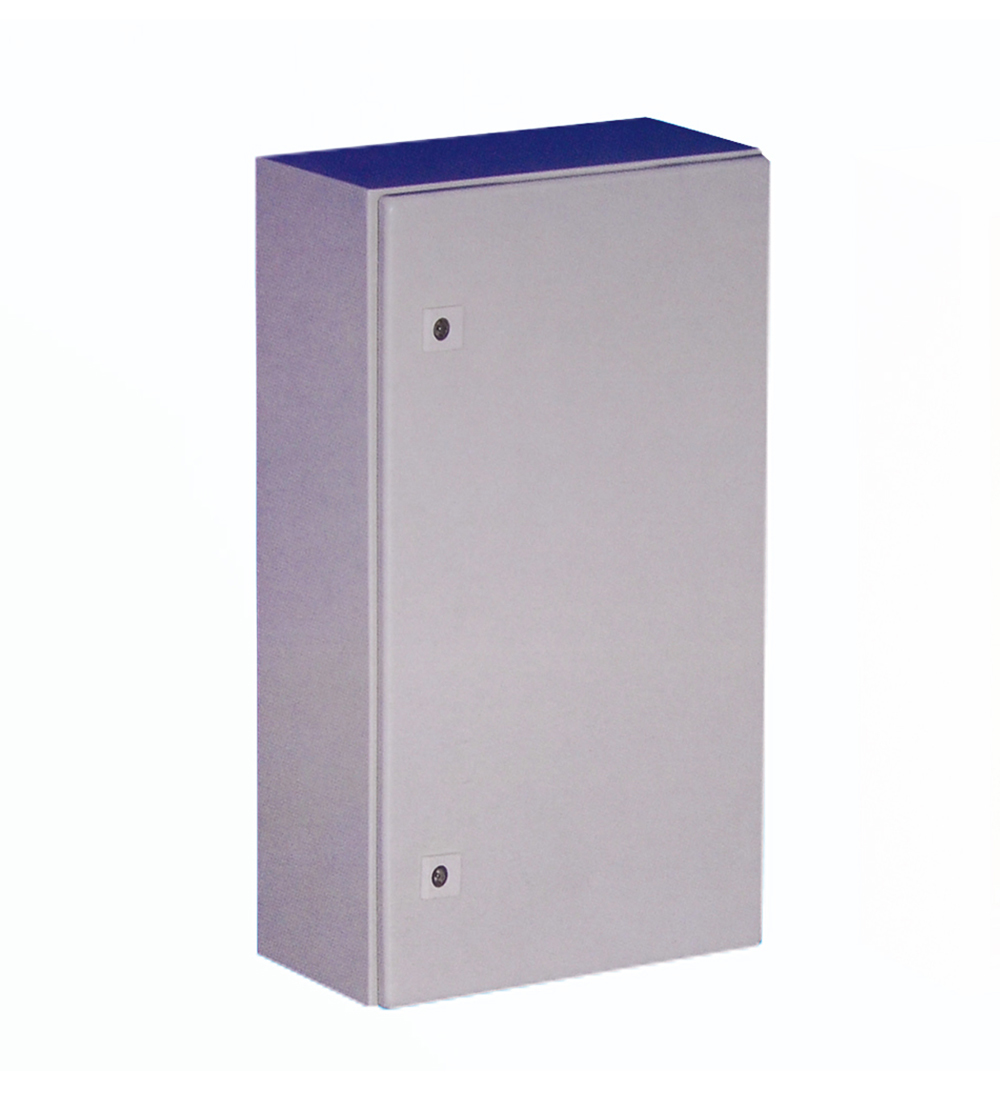

18U IP55 Wall Mounted Outdoor Server Rack Waterproof Cabinet for Industrial Use 0
Product Specifications
Material SECC quality cold rolled steel;
Mounting profile: Thickness:1.2mm; Others:1.0mm;
Loading Capacity Static loading: 100kg
Degree of protection IP65
Surface Finish Degreasing; Pickling; Phosphating; Powder Coated
Product Specification 6U-18U
Width: 600mm
Depth: 600mm, 450mm
