| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | LE or OEM |
| 인증: | CE/ROHS |
| 모델 번호: | WS1 |
| 최소 주문 수량: | 10PCS |
| 가격: | 25 |
| 포장 세부 사항: | 조립/분해 된 포장 |
| 배달 시간: | 4주 이내 |
| 지불 조건: | L/C, D/A, Western Union, PayPal |
| 공급 능력: | 주당 1000개/개 |

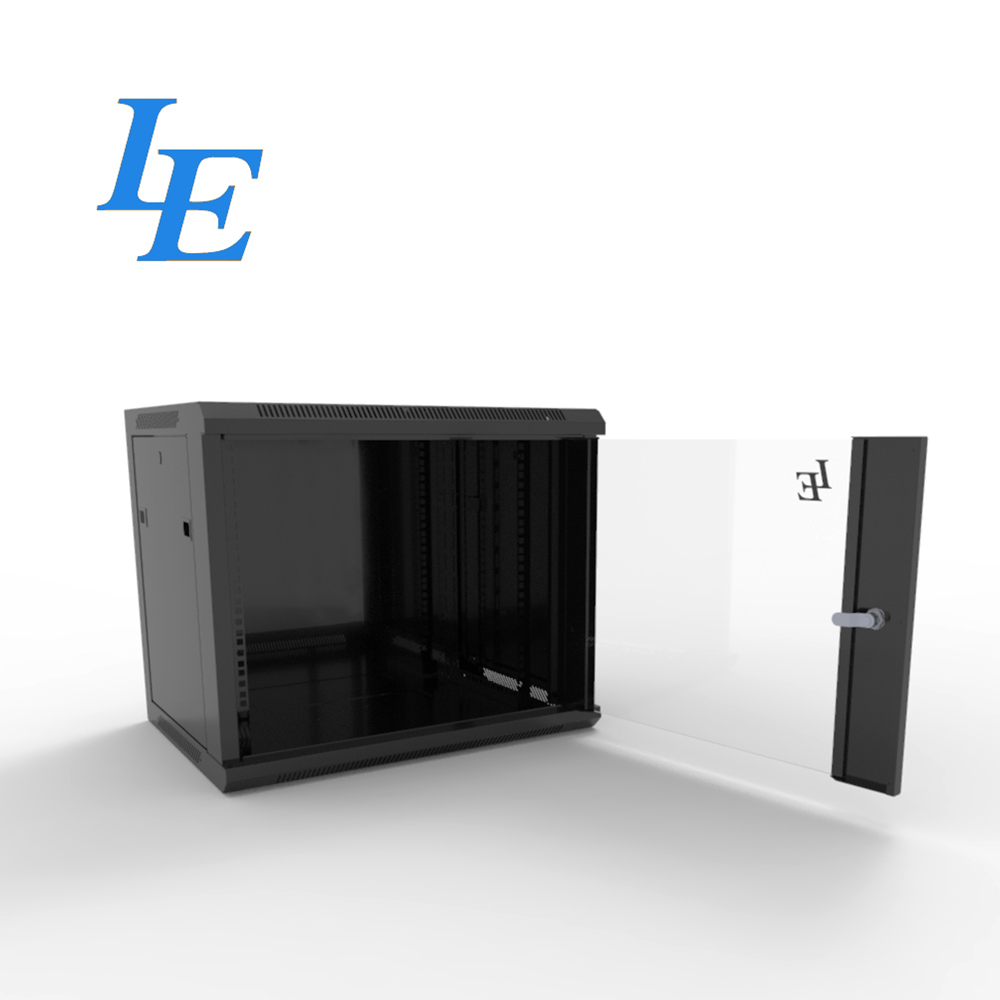

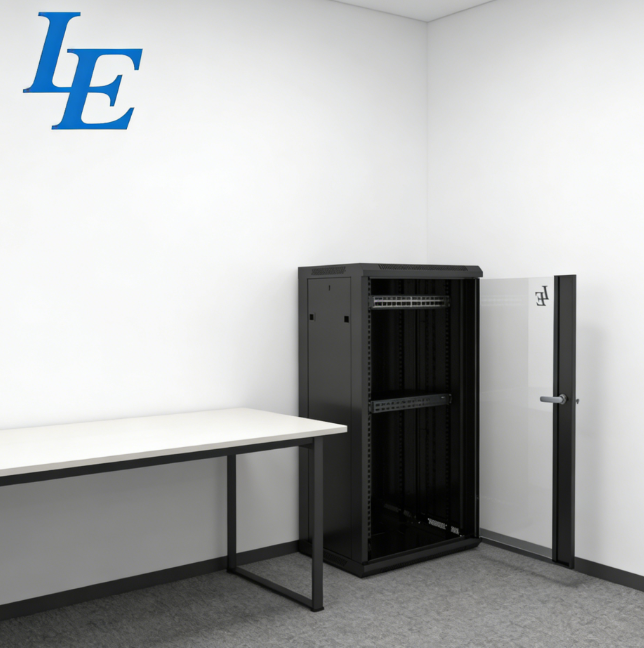

| 제품명: | 서버 랙 캐비닛 4U~27U(450mm 또는 600mm 깊이 SPCC 프레임 및 강화 유리 도어 포함) | 유형: | 벽걸이용 네트워크 내각 |
|---|---|---|---|
| 키: | 4U - 27U | 색상: | Ral9004 ; Ral9005 ; Ral7035 |
| 마트르셜 두께: | 장착 프로파일 : 1.5 밀리미터, 다른 사람 : 1.2 밀리미터 | 적재 능력: | 60kg |
| 재료: | SPCC 품질 냉 압연 강철 | 보호 정도: | IP20 |
| 깊이: | 450/600 밀리미터 |
| S/N | LE-WS1 |
| Standard |
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard |
| Material | SPCC quality cold rolled steel; Mounting profile: Thickness:1.2mm Tempered glass: Thickness:5.0mm |
| Loading Capacity | Static loading:60kg |
| Degree of protection | IP20 |
| Surface Finish | Degreasing; Pickling; Phosphating; Powder Coated |
| Product Specification | 27U Width: 600mm Depth: 600mm |
| Style |
Welded frame, single section, compatible with 19" standard equipments. Removable side panel, easy to install and lock optional. 5mm tempered glass front door with over 180 turning degree. Cable entry on the top and bottom. L-shaped mounting profile, easy to adjustable on the mounting rail. Fan cutout on the top, easy to fix on the wall. |
Our Advantages
1.Germany WAGNER laser cutting machine and car painting equipment, higher efficiency.
2. There are 5 layers of imported Meika corrugated cardboard outside the carton, which are glued to prevent scratches and protected more carefully.
3. Professional container loading team, make full use of space, avoid shaking and save your transportation cost.
4. The on-time delivery rate is over 95%.
|
Main Structure

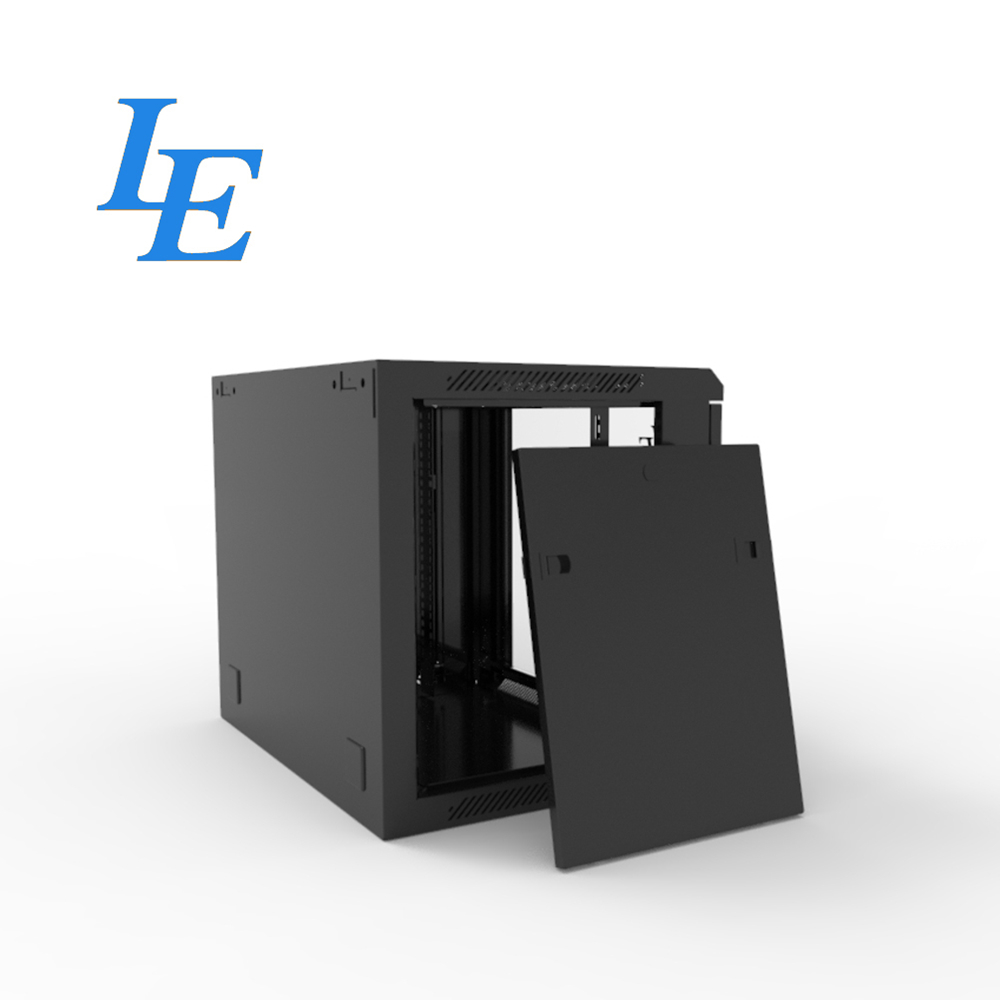

1. Installing backboard 2.Mounting profile(L-shaped) 3.Side panel 4.Cable entry plate 5.Top 6.Tempered glass front door 7.Tempered glass front door vented border
|
Ningbo Latitude International Trade Co., Ltd. is a manufacturer specializing in the production of server cabinets, network cabinets, outdoor cabinets, wall cabinets and other communication equipment. Over the years, we have been committed to the research and development, design and manufacture of indoor and outdoor cabinet products.
