| 원래 장소: | 중국 잔기 |
|---|---|
| 브랜드 이름: | LE |
| 인증: | ISO 9001:2008,CE,ROHS,SGS,TUV,BV |
| 모델 번호: | LE-WS3 |
| 최소 주문 수량: | 1 |
| 포장 세부 사항: | 편평한 패킹: 비닐 봉투+보호된 코너+판지 |
| 배달 시간: | 5-8 근무일 |
| 지불 조건: | L/C,T/T,Western Union,D/A,D/P |
| 공급 능력: | 일 당 5000 PC |
| Materila: | SPCC 품질 냉 압연 강철 | 색상:: | Ral9004;Ral9005;Ral7035 |
|---|---|---|---|
| 재료 두께: | 1.2mm;온화된 유리:50.0mm | 로딩 용량: | 100kg |
| 보호 정도: | IP20 | 너비: | 600mm |
| 깊이: | 450mm,600mm | 키: | 4-22U |

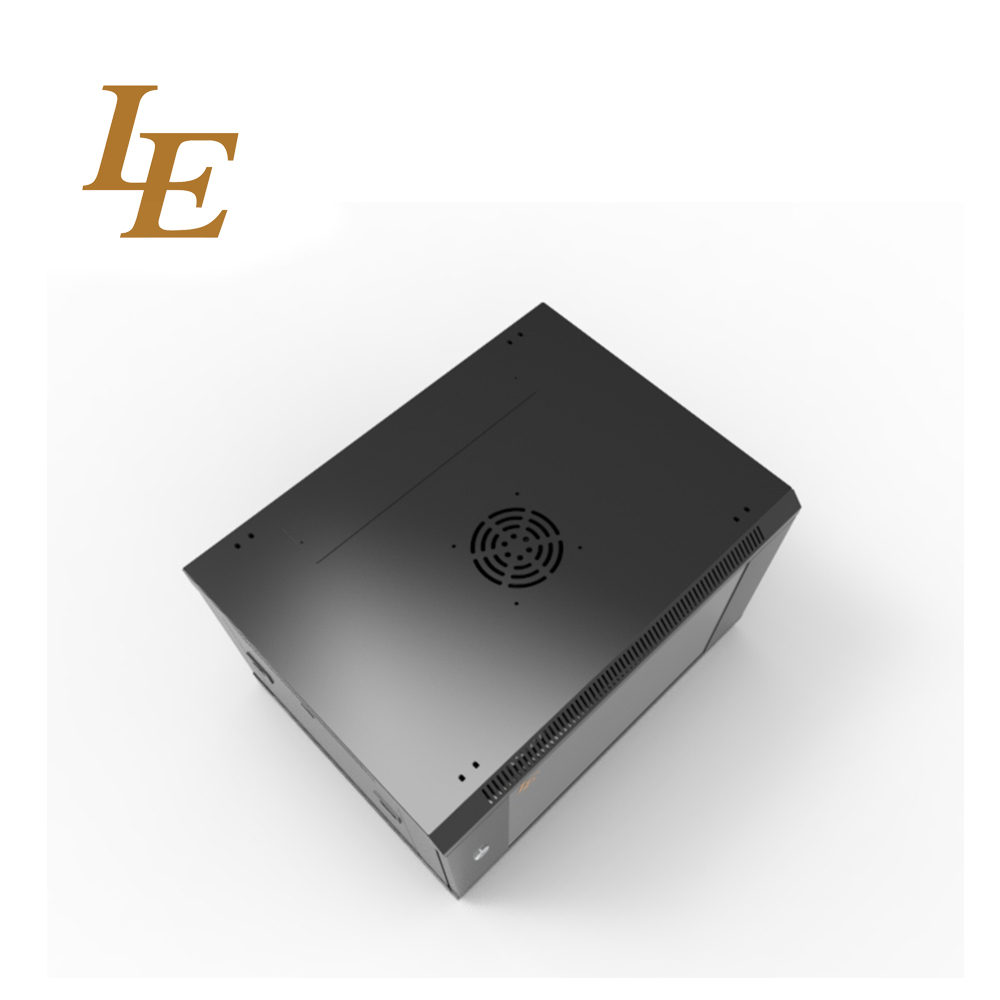

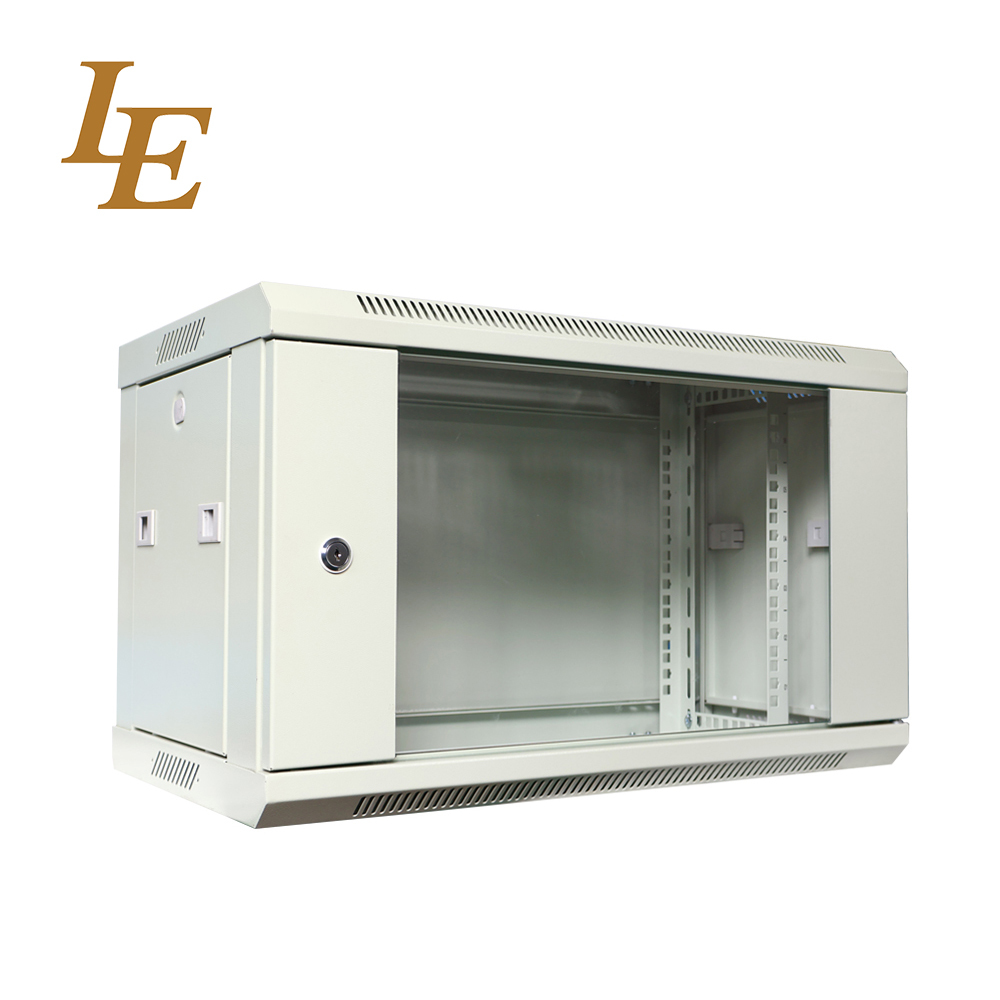

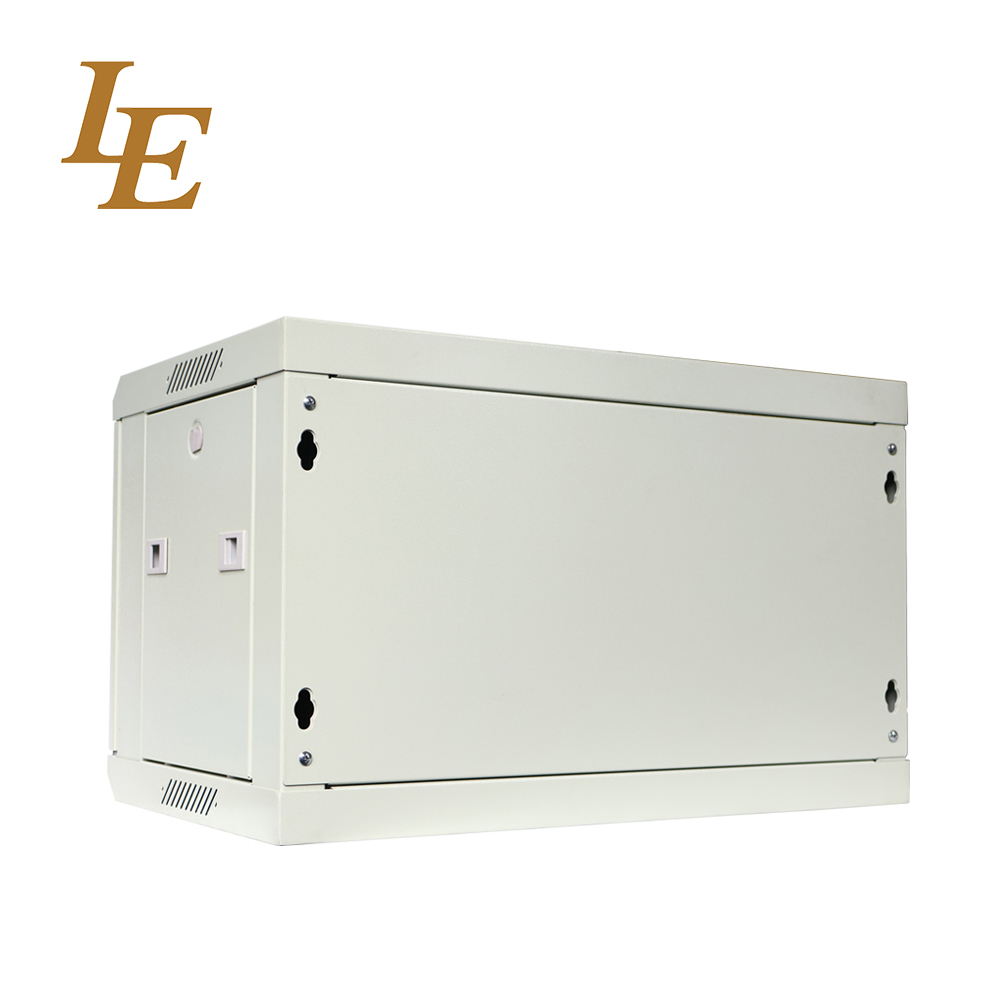

19 Inch Wall Mounted Rack Enclosure RAL7035 Grey RAL9004 Black 4U 6U 9U 12U Metal Cabinet 600mm Width 450mm/600mm Depth
General Description:
1. Welded frame, single section, compatible with 19" standard equipments;
2. 5mm tempered glass front door with over 180 turning degree;

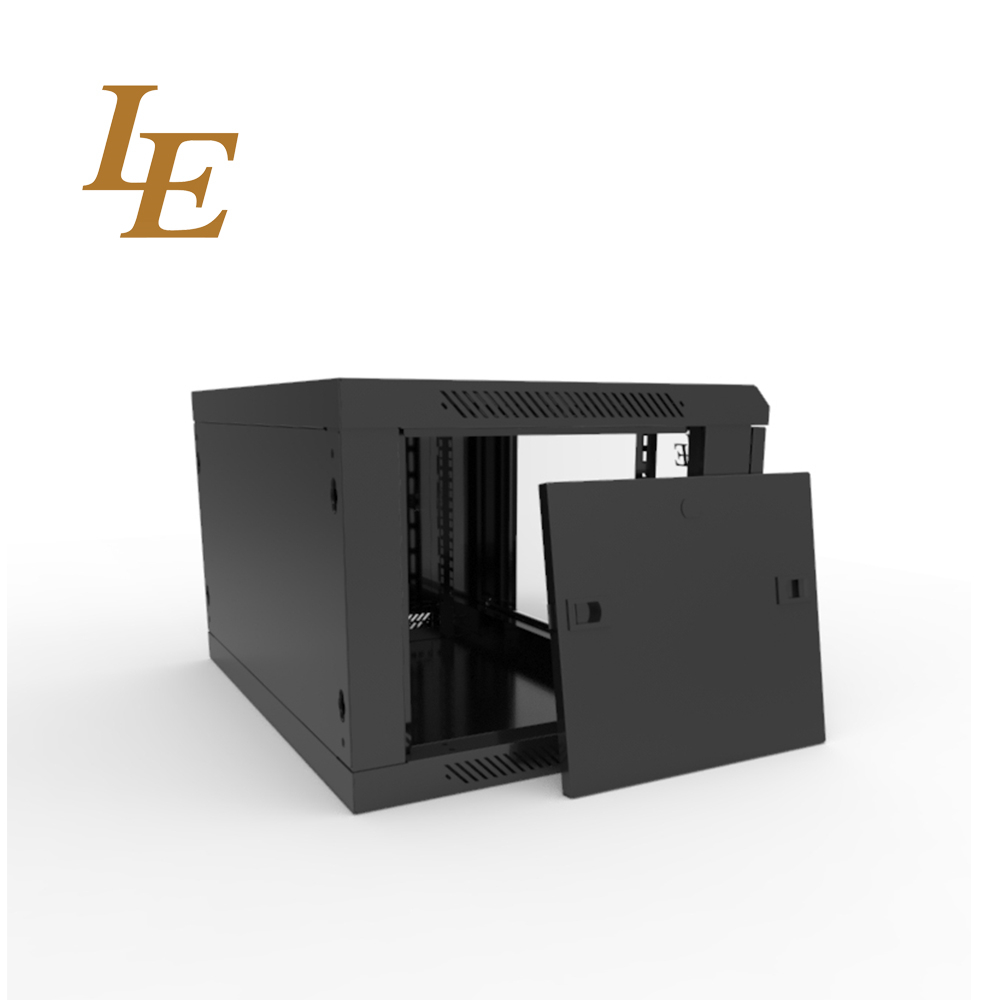

3. Removable side panel, easy to install and lock optional;
4. Cable entry on the top and bottom;
5. L-shaped mounting profile, easy to adjustable on the mounting rail;
6. Fan cutout on the top, easy to install fan;
7. Installing back panel, easy to fix on the wall;
8. Various accessories for option;
| S/N | LE-WS3 |
| Material | SPCC quality cold rolled steel |
| Loading Capacity | 100kg |
| Degree of Protection | IP20 |
| Surface Finish | Degreasing,Pickling,Phosphating,Powder Coated |
| Production Specification | 4-22U |
| Width | 600mm |
| Depth | 450mm,600mm |
| Color | Ral9004;Ral9005;Ral7035 |
| Order Codes | Capacity | W*D*H(mm) |
| LE-W3S-6404 | 4 | 600*450*279 |
| LE-W3S-6604 | 4 | 600*600*279 |
| LE-W3S-6412 | 12 | 600*450*634 |
| LE-W3S-6612 | 12 | 600*600*634 |
| LE-W3S-6422 | 22 | 600*450*1081 |
| LE-W3S-6622 | 22 | 600*600*1081 |
Q1: Are you manufacturer of trading company?
A1: We are a manufacturer in Zhejiang, China.
Q2: When can we get the reply?
A2: Any inquiries will be replied within 24 hours, but holidays are excepted.
Q3: Can I get some samples?
A3: Yes, sample order is available for quality check and market test.
Q4: What is your payment term?
A4: We usually accepet T/T as the main payment term, and other payments can also be negotiated.
Q5: What is the delivery time?
A5: It usually takes about 15-30 days to prouduce the products
Q6: Quality problems?
A6: If there is any quality problem or question, we could offer technical support or return service
